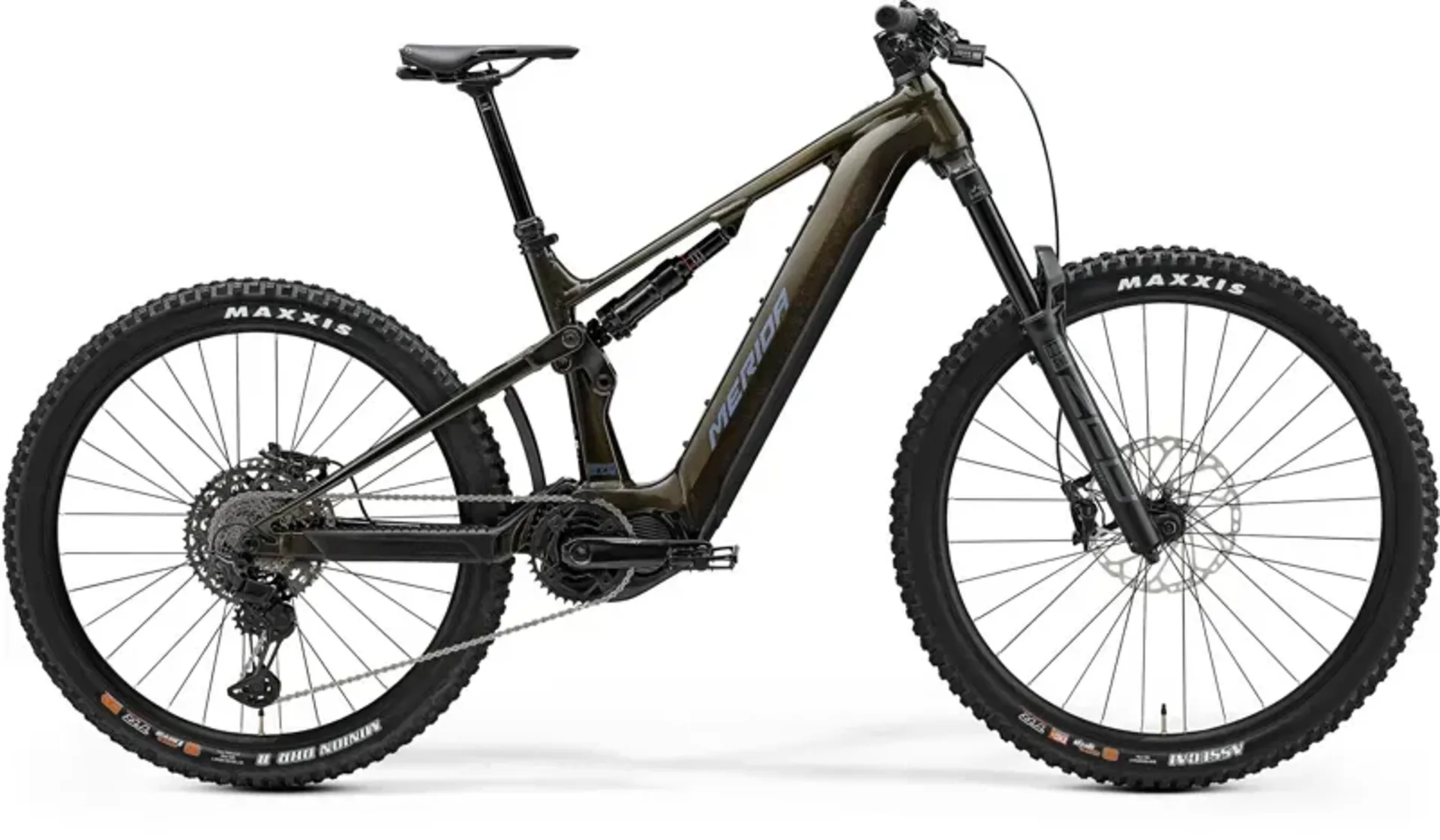

Merida eOne-Sixty 875 E-Mountain Bike In Gold/Grey

Season:2025

Brand:Merida

Code:P-Q830

Goodbye range anxiety, hello horizon.

The eONE-SIXTY 875 marries a full-power drive unit with a user-removable 750 Wh battery and optional 360 Wh range extender, all wrapped up in a durable aluminium frame. With a proven, low-maintenance FAST suspension platform, you can run mixed wheel sizes as standard or switch to full 29" without compromise. The no-compromise suspension performance of a RockShox Zeb fork and Super Deluxe shock is combined with Shimano's durable XT Linkglide drivetrain.

With the latest eONE-SIXTY, the next descent is always about to start. With an all-aluminium frame, it offers maximum value and maximum battery range, thanks to a powerful drive unit paired with a removable 750 Wh battery and optional 360 Wh range extender. The incredibly capable geometry derived from the award-winning ONE-SIXTY enduro range provides handling that'll help you conquer the toughest climbs as well as the most grin-inducing descents. The proven FAST kinematic suspension will take care of anything the trail throws at it, offering 174 mm of rear wheel travel to go with 170 mm at the front.

With mixed size 29" front and 27.5" rear wheels as standard for playful handling, you can switch to a focussed full 29er setup without messing up the geometry, thanks to the flip chip design. With low standover heights across all sizes, you can choose between a longer frame for more stable handling or a shorter one for an agile feel. Some models feature a ground-breaking 30-230 mm travel-adjustable dropper post.

Features:

  • Fourth generation LITE aluminium frame with 174 mm rear wheel travel.
  • Rockshox Zeb fork with 170 mm travel and Super Deluxe rear shock.
  • Hardwearing Shimano XT Linkglide drivetrain and MERIDA tubeless-ready wheelset.
  • User-removable 750 Wh battery with optional 360 Wh range extender, powerful Shimano EP801 drive unit.
  • Mixed wheel size as standard with option to full 29".
  • Reach-based AGILOMETER sizing system with 30-230 mm adjustable dropper post.
Technical Information
  • Frame
    Lite IV - Hydroformed 6061 double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29 x 2.6.
  • Rear Shock
    Rock Shox Super Deluxe Select.
  • Fork
    Rock Shox ZEB Select; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29 x 2.8.
  • Headset
    Acros ICR Merida external neck with Blocklock.
  • Stem
    Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes.
  • Handlebar
    Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise.
  • Grip
    Merida Expert EC.
  • Brake Type
    Hydraulic disc.
  • Brake Lever
    Shimano XT.
  • Brake Calipers
    Front: Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor. Rear: Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT-EM600 203mm rotor.
  • Tyres
    Front: Maxxis Assegai; 29 x 2.5; Kevlar bead, folding; TR EXO+ 3C MaxxGrip. Rear: Maxxis DHR II; 27.5 x 2.4; Kevlar bead, folding; 3C DD TR MaxxTerra.
  • Wheels
    Rims: Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29; rear 27.5. Spokes: Black stainless. Front Hub: Shimano XT; 110x15mm; 32 spoke; Centerlock. Rear Hub: Shimano XT; 148x12mm; 32 spoke; Centerlock with Merida Expert TR; including removable lever, 6/4mm allen key.
  • Speeds
    11 Speed.
  • Rear Derailleur
    Shimano XT RDM8130 LinkGlide 11.
  • Shift Levers
    Shimano SL-MT500-IL dropper lever with Shimano XT M8130-11 shifter.
  • Chain
    Shimano LG500.
  • Cassette
    Shimano LG700; 10-50 teeth; 11 Speed.
  • Chainset
    FSA 1x Steel chainring; 36 teeth with Shimano FC-E8150 crank; 165mm for all sizes; with Merida chain guide.
  • Bottom Bracket
    Part of Shimano Steps motor.
  • Pedals
    VP VPE-527.
  • Saddle
    Proxim Nembo Steel; V-mount adapter; including Merida minitool.
  • Seat Post
    Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel.
  • Motor
    Trendpower Internal Battery Gen 2; 750Wh, Shimano EP801; 85Nm.
  • Battery Capacity
    750Wh.
  • eBike Display
    Shimano SC-EM800.
